VSSJA-1(BF) Single Flange Limited Expansion Joint

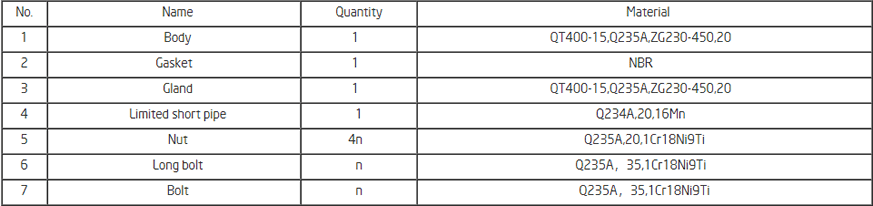

1.The structure of the products: rubber joint general within the layer, fabric reinforced layer, adhesive layer and outer layer, the end part of the reinforcement metal or the steel wire ring, metal flange or parallel movable joint composition. Structure are as follows. 2.Specification size. 3.Working pressure: the test pressure of the rubber joint is 5 times of the working pressure, and the blasting pressure is 3 times of the working pressure. 4.Vacuum resistance: nominal diameter 300mm below, working pressure 1.6Mpa above the rubber joint, vacuum resistance is not less than 100Kpa, other specifications of rubber will be the forehead of the vacuum degree by the supply and demand sides agreement. 5.Displacement performance. 6.Physical and mechanical properties of rubber joints with rubber. 7.The rubber joint used for evaluating the safety of drinking water system: rubber joint used for drinking water system, the safety of boxer.
