Forged Steel Y Type Strainer Class 800 is used to protect expensive equipment installed in a pipeline from dirt, debris and particulates.
Supplied with a standard fine screen for effective filtration down to 20 mesh (920μm or 0.037”). Screwed Plug enables easy removal and cleaning of basket.
Available in forged steel and conforming to API 602 and ASME B16.34. Offered in various end connections for use with a wide range of applications including: – Steam, Thermal Oil, Air, Gas and water.
1. Design
API602, ANSI B16.34, BS5352, GB/T12224, GB/T12228, GB/T12234
2. Socket Welding End
ANSI B1.20.1(NPT), GB/T7306-87(RC)
ANSI B16.5, JB/T82.1"82.4-49
6. Face to Face of Flaned Valves
Bolted Bonnet(BB)/Welded Bonnet(WB)
API598, GB/T13927, JB/T9092

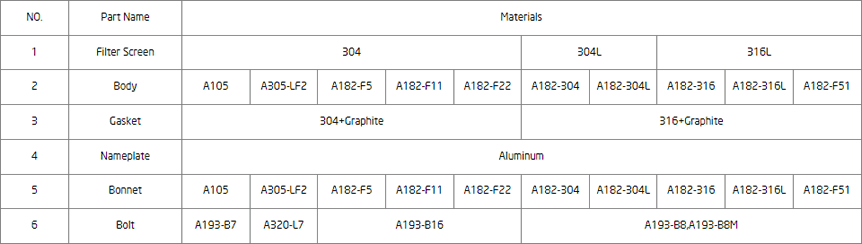

A105, LF2, F5, F11, F22, F304, F316, F304L,etc. and Monel, Alloy20
1.Y type filter for medium can be for water, oil and gas.
2.General water network for 18-30, ventilation network is 10-100, net oil 100~480.
3.Basket type filter mainly by taking over, competent, filter blue, flange, flange cover and the fastening parts composition.
4.When the liquid enters into the filter through the director of blue, the solid impurity particles blocked in the blue filter, and the clean fluid through the filter blue, from the filter outlet discharge
